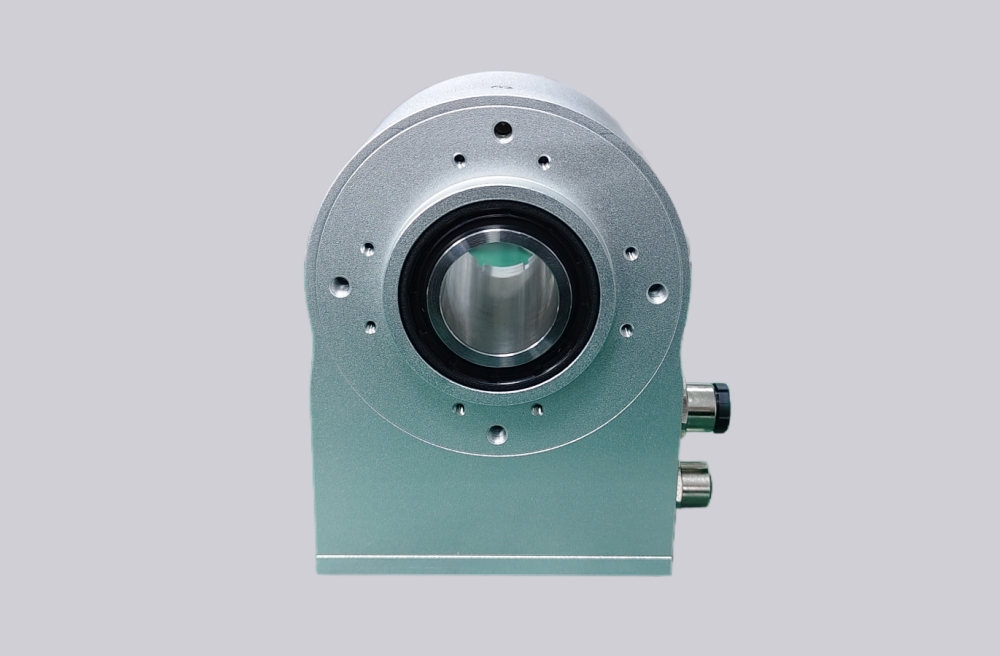

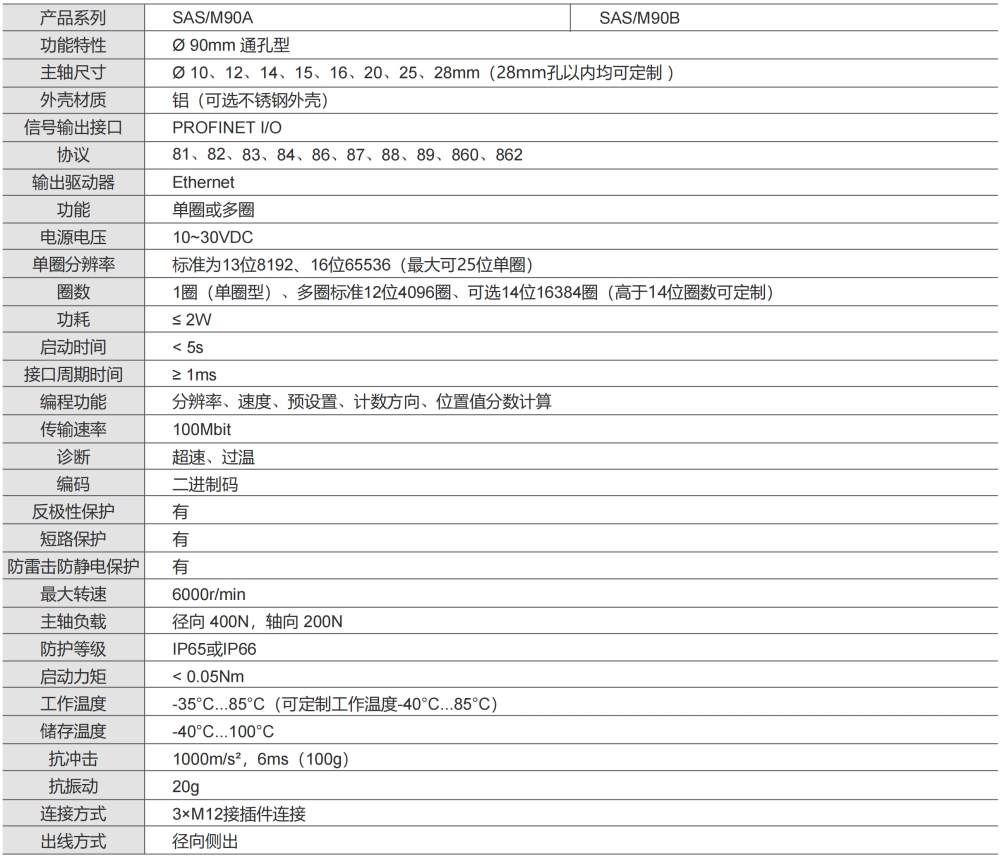

Large through-hole bus type outputs for easier installation
High precision optical sensing technology, single or multi-turn encoders
Single-turn resolution up to 25 bits, multi-turn standard up to 14
ProfiNet I/O bus up to 100 Mbit, version 2.44 bit, or customized for higher turns

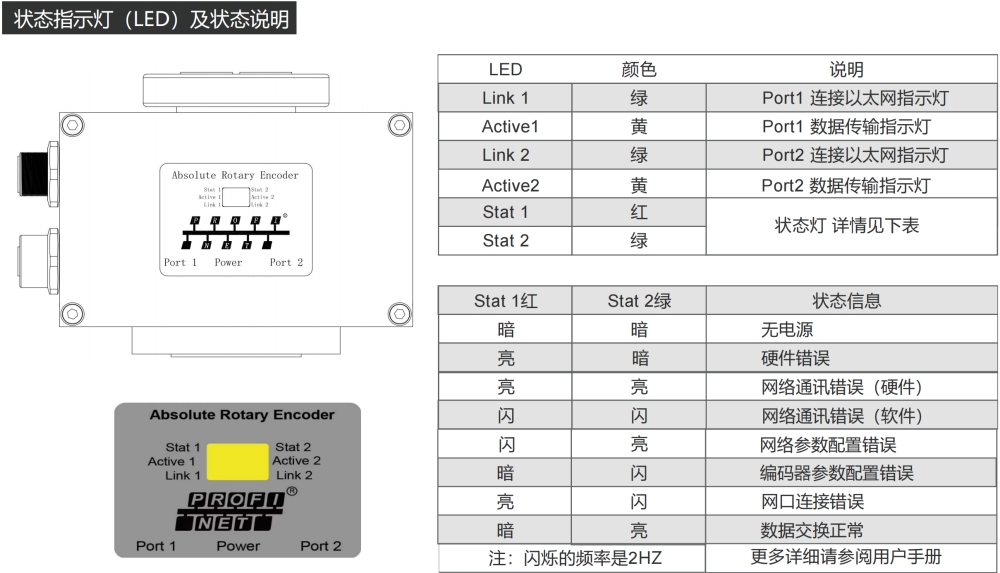

Superior resistance to magnetic field interference, LED status display
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

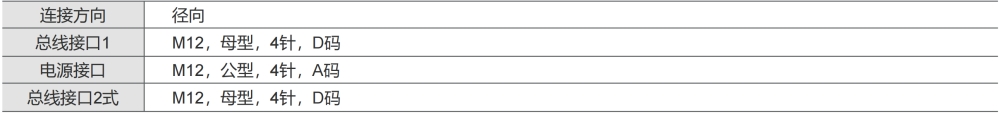

electrical connection

Top view of pin connector block

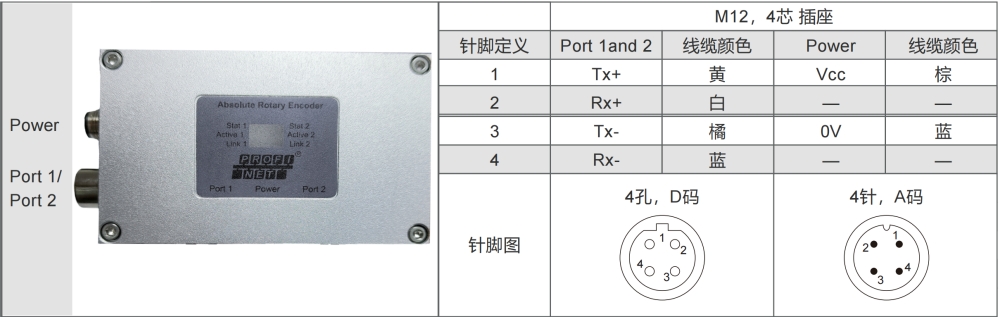

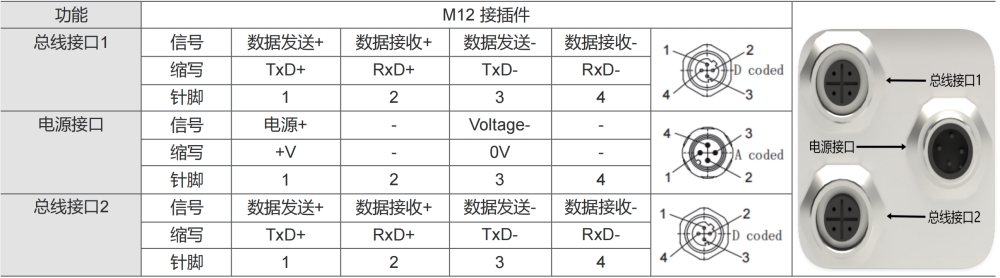

Wiring Definitions

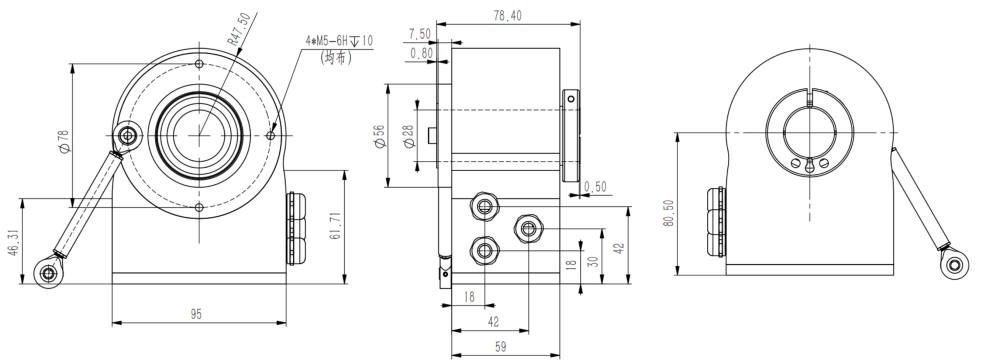

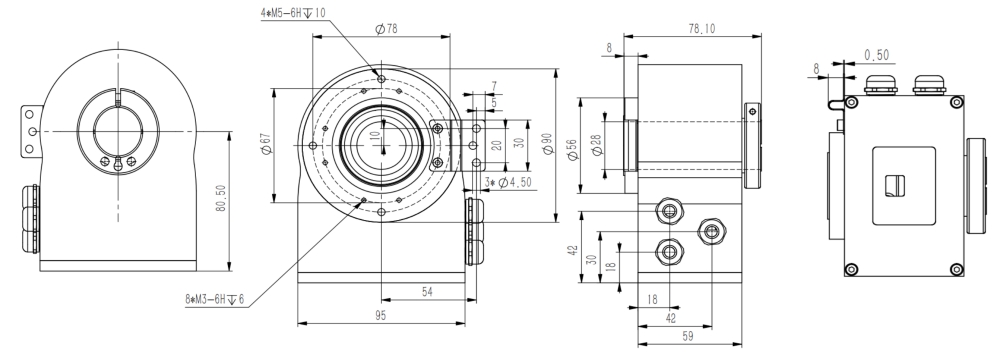

Installation Dimension Drawing

SAS/M90A

SAS/M90B

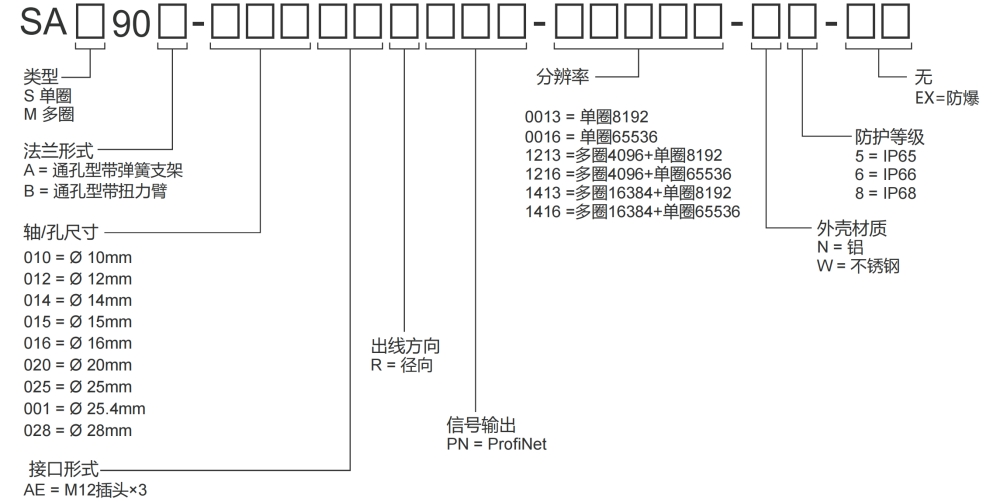

Ordering Model Code
