Large through-hole bus type outputs for easier installation
High precision optical sensing technology, single or multi-turn encoders
Single-turn resolution up to 16 bits, multi-turn standard up to 14
Profibus-DP bus, or customized for higher number of turns
Superior resistance to magnetic field interference, high protection level: up to IP66
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

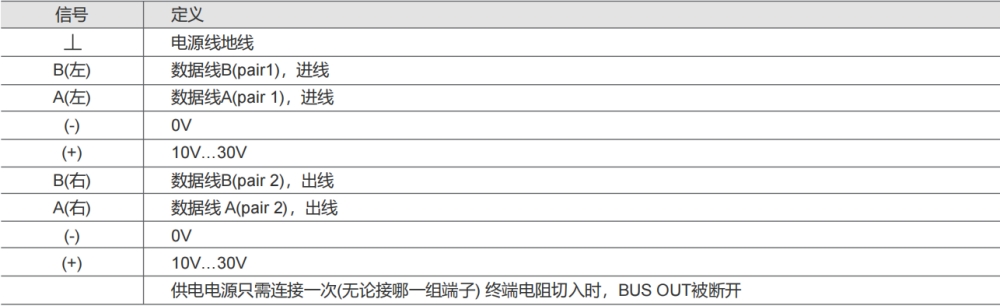

Wiring Definitions

Installation Dimension Drawing

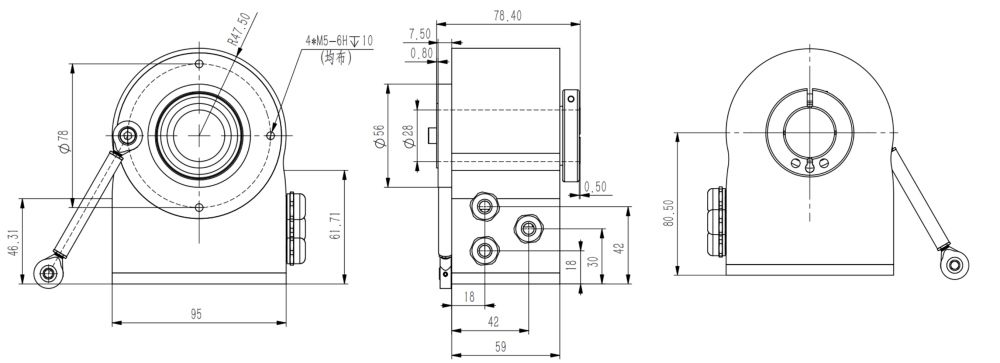

SAS/M90A

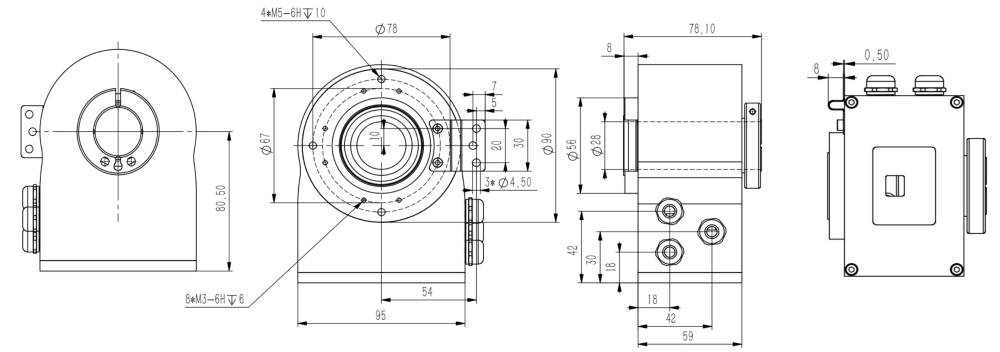

SAS/M90B

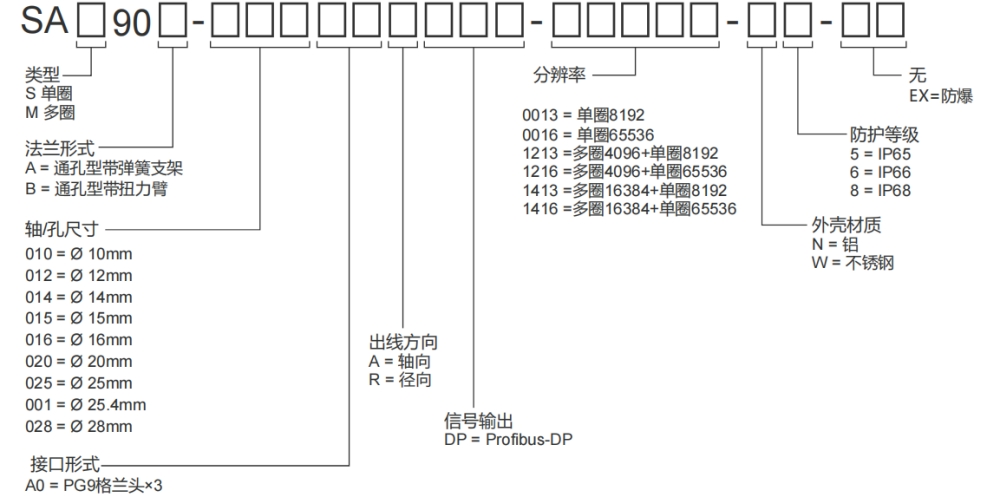

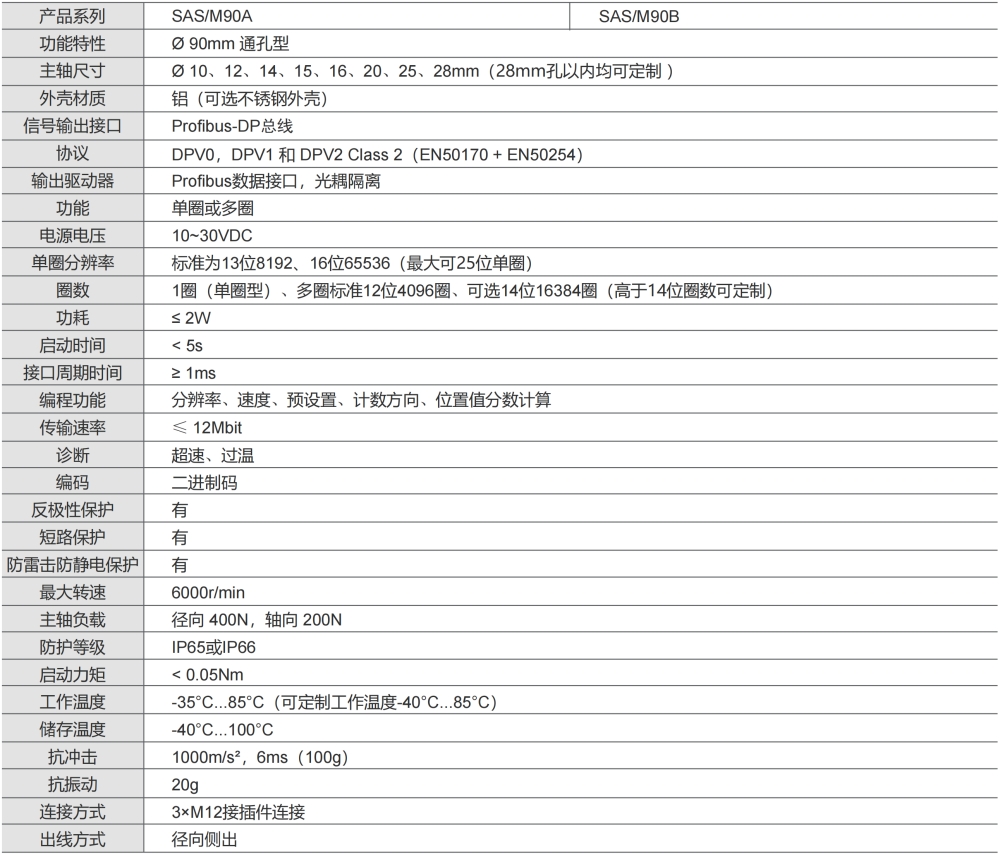

Selection Data Sheet
